Auxiliary Input
N/A
Channels
Two
Inputs
Two - 1 Mic/Line, 1 Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
Voltage
220-240V EU
VoltageRequirements
100-240 VAC, 50-60 Hz

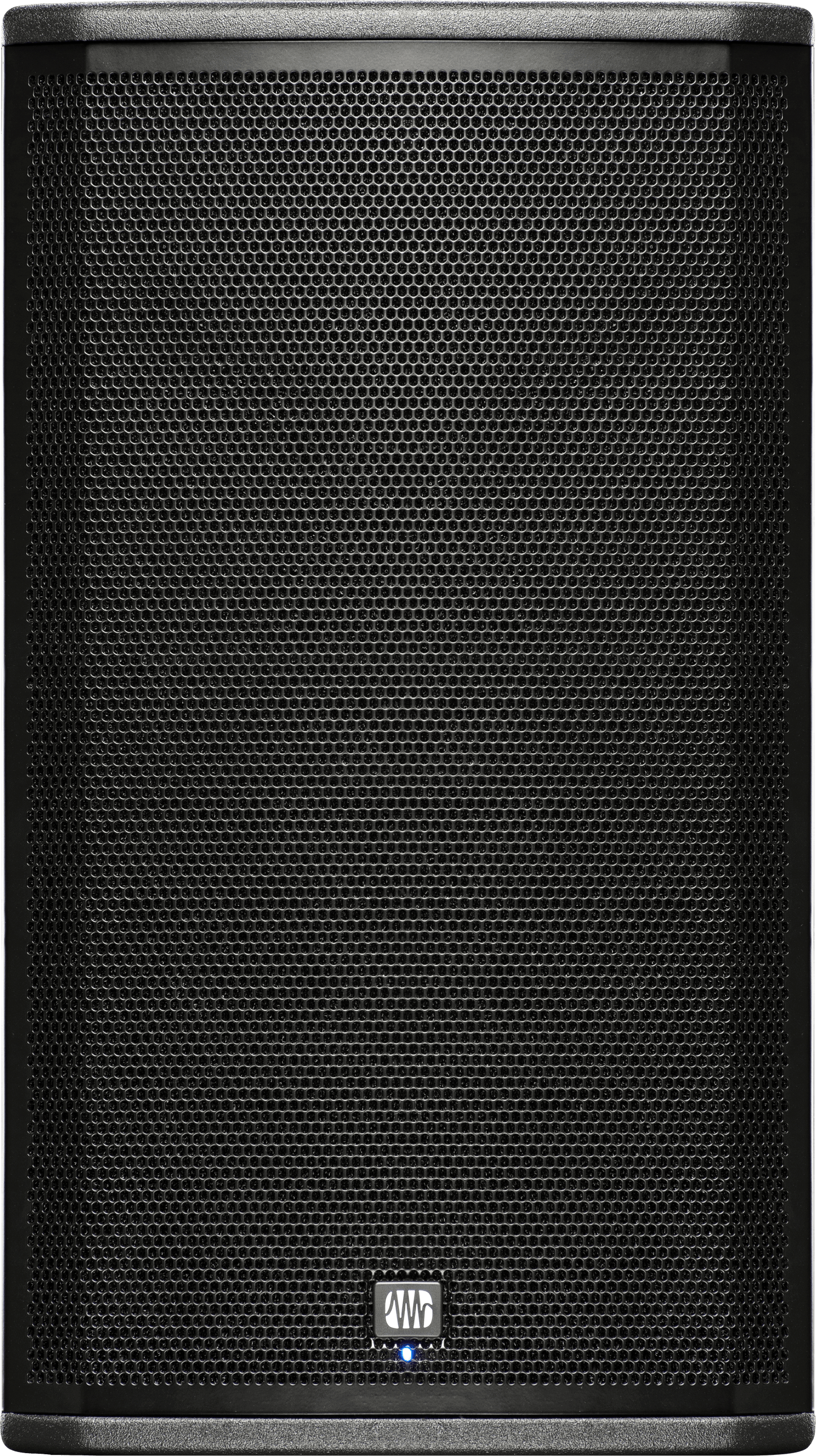

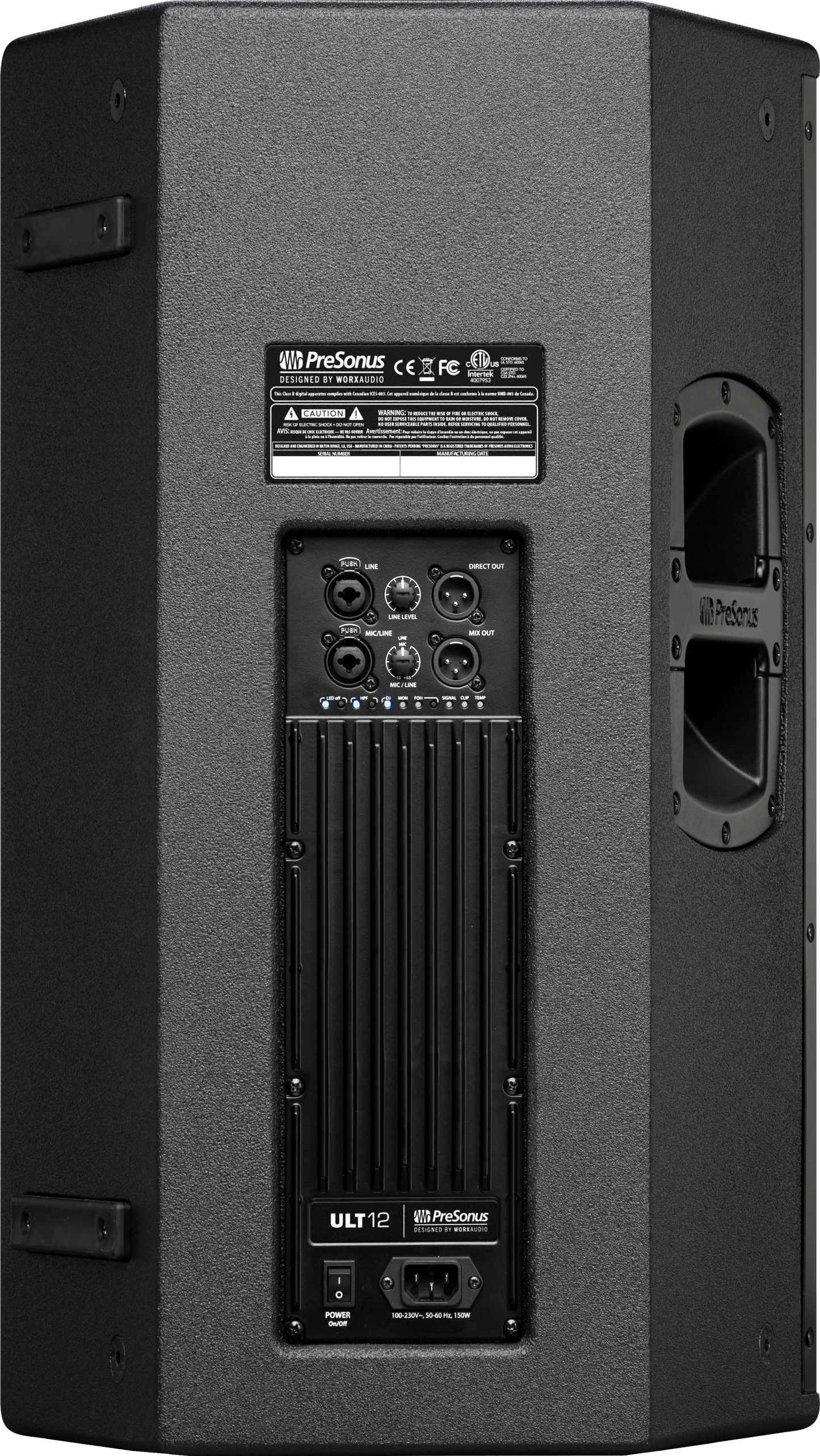

ULT12 2-way Active Sound-Reinforcement Loudspeaker
ULT12 2-way Active Sound-Reinforcement Loudspeaker
Couldn't load pickup availability
Specs
Amplifier Type
Class-D
Color
Black
Product Name
ULT12 2-way Active Sound-Reinforcement Loudspeaker, Black, 220-240V EU
Series
PreSonus® Covers
Audio Controls
Mic/Line Level Line/Level Preset Select HPF On/Off Front LED On/Off
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
300W Peak (150W RMS)
HF Transducers
1.75" Titanium Diaphragm Compression Driver
Handle
2 Side
LF Power
1000W Peak (500W RMS)
LF Transducers
1x12" Ferrite (2.5" Voice Coil)
Pole Socket
35 mm, 2-Position
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Microphone Preamp Input Impedance
1 kΩ
Loudspeaker Monitor Angle
30 degree
Product Depth
13.9" (353 mm)
Product Height
25.25" (641 mm)
Product Height/Length
25.25" (641 mm)
Product Weight
52 lbs. (23.58 kg)
Product Width
14" (356 mm)
DSP Features
Presets: FOH, MON, DJ
Power Cable
IEC
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: Limiter
Supported Sample Rates
96 kHz
Suspension
M10 Suspension Points
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24-bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1300W Peak (650 RMS)
Coverage Pattern
110 degree (H) x 50 degree (V)
Crossover Frequency
1.6 kHz
Speaker Type
2-Way Biamped
Total Impedance
NA
Specs
Auxiliary Input
N/A
Channels
Two
Inputs
Two - 1 Mic/Line, 1 Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
Voltage
220-240V UK
VoltageRequirements
100-240 VAC, 50-60 Hz
Amplifier Type
Class-D
Color
Black
Product Name
ULT12 2-way Active Sound-Reinforcement Loudspeaker, Black, 220-240V UK
Series
PreSonus® Covers
Audio Controls
Mic/Line Level Line/Level Preset Select HPF On/Off Front LED On/Off
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
300W Peak (150W RMS)
HF Transducers
1.75" Titanium Diaphragm Compression Driver
Handle
2 Side
LF Power
1000W Peak (500W RMS)
LF Transducers
1x12" Ferrite (2.5" Voice Coil)
Pole Socket
35 mm, 2-Position
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Microphone Preamp Input Impedance
1 kΩ
Loudspeaker Monitor Angle
30 degree
Product Depth
13.9" (353 mm)
Product Height
25.25" (641 mm)
Product Height/Length
25.25" (641 mm)
Product Weight
52 lbs. (23.58 kg)
Product Width
14" (356 mm)
DSP Features
Presets: FOH, MON, DJ
Power Cable
IEC
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: Limiter
Supported Sample Rates
96 kHz
Suspension
M10 Suspension Points
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24-bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1300W Peak (650 RMS)
Coverage Pattern
110 degree (H) x 50 degree (V)
Crossover Frequency
1.6 kHz
Speaker Type
2-Way Biamped
Total Impedance
NA
